Asymmetric Optimization of Reasoning and Perception in VLM Post-Training

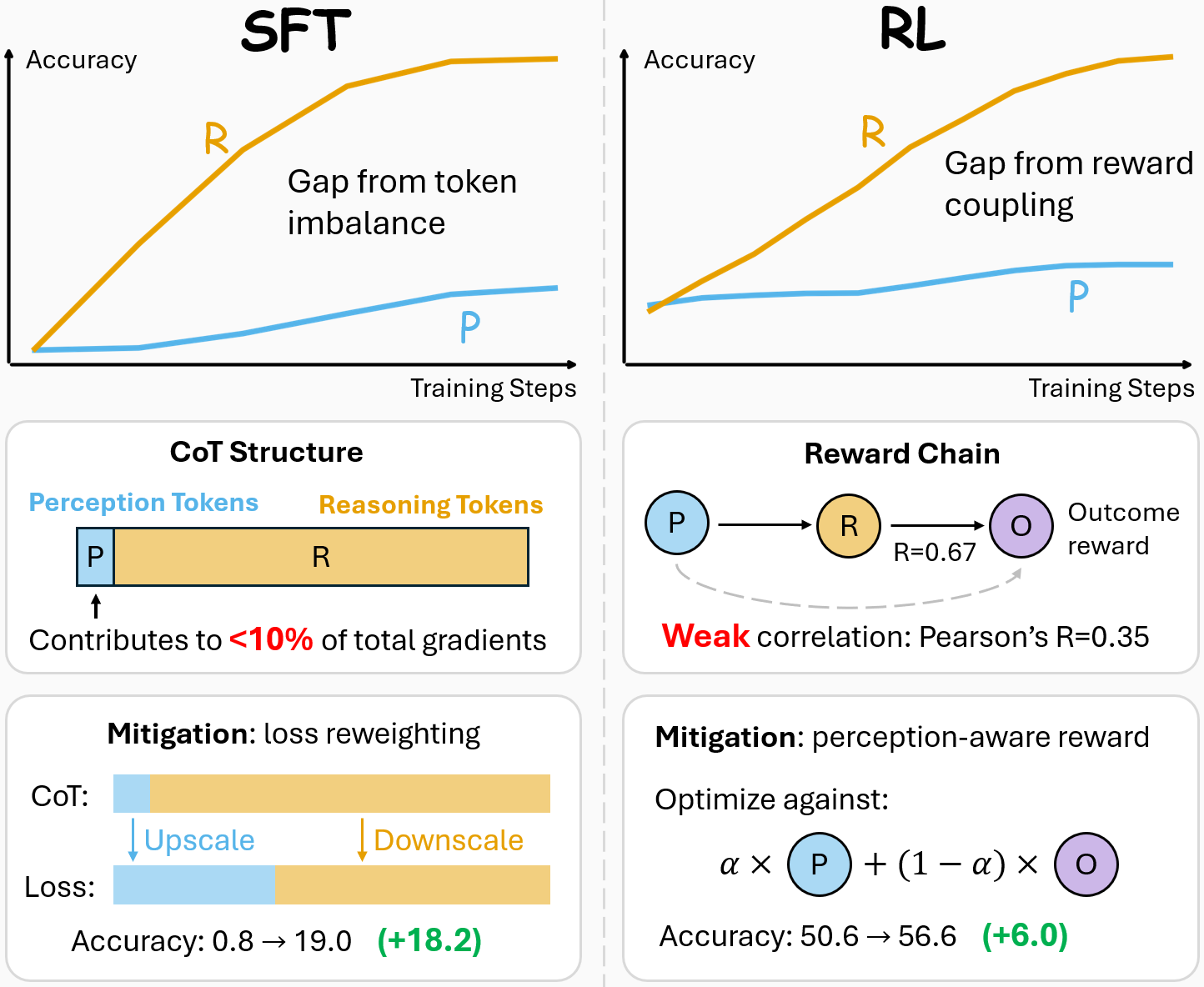

Teaser figure: asymmetric optimization in SFT and RL — **Asymmetric optimization of perception and reasoning.** Both SFT (left) and RL (right) improve reasoning (R) substantially more than perception (P), but for different reasons — and each admits a different mitigation.

Abstract

Post-training has greatly improved reasoning in frontier vision-language models, yet its gains for perception remain comparatively limited, creating a bottleneck for end-to-end visual reasoning. To investigate this gap, we introduce a controlled diagnostic framework with two synthetic tasks that disentangle perception from reasoning. Our analysis reveals a consistent perception-reasoning asymmetry: post-training improves reasoning more substantially than perception, though the underlying mechanism differs by training paradigm.

For supervised fine-tuning (SFT), this asymmetry stems from token imbalance in chain-of-thought supervision, where perception occupies fewer tokens and thus receives a weaker training signal. Dynamically reweighting the loss mitigates this imbalance and boosts end-to-end performance by up to 18.2. For reinforcement learning (RL), the asymmetry instead arises from reward coupling: outcome rewards correlate more strongly with reasoning than with perception, weakening the signal for perception learning. Adding a perception-aware reward alleviates the imbalance and improves end-to-end accuracy by up to 6.0; even without ground-truth perception rewards, a reliable surrogate reward provides useful signal, yielding gains of 3.2 points.

Key Findings

1

A consistent asymmetry across SFT and RL

Across two model families (Qwen3-VL, InternVL3.5) and two tasks (Graph Coloring, Sudoku), both SFT and RL improve reasoning far more than perception, leaving perception as the dominant bottleneck for end-to-end visual reasoning.

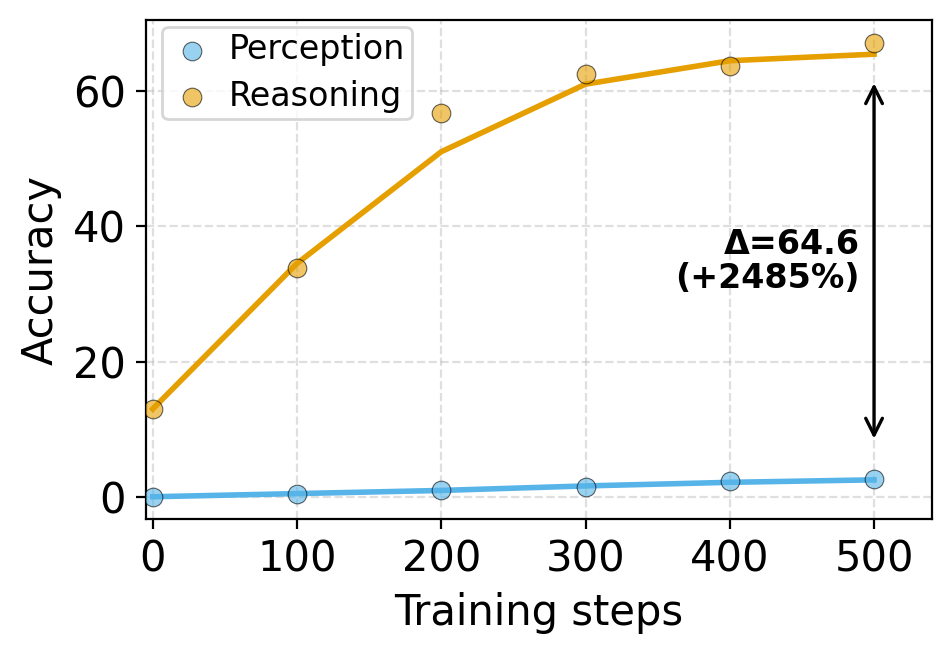

SFT training curves: reasoning rises sharply while perception stays flat — SFT: reasoning lifts dramatically; perception barely moves.

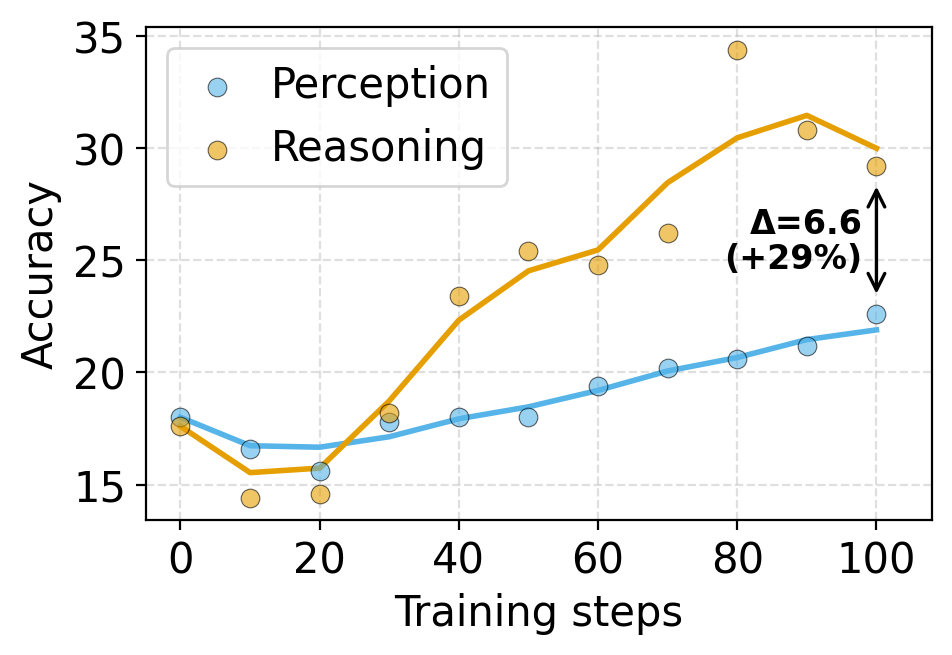

RL training curves: reasoning rises faster than perception — RL: same pattern — reasoning outpaces perception.

The two paradigms share a symptom but, as we show below, arise from different mechanisms — and require different mitigations.

2

SFT: token imbalance → loss reweighting

Mechanism. In CoT supervision, perception occupies only ~2.5% of tokens and contributes just ~1.3% of the loss — token-averaged cross-entropy implicitly starves perception of gradient.

Mitigation. Reweight the loss to upweight perception tokens. A fixed weight already helps; dynamic multi-task balancing (NGDiff) lifts end-to-end accuracy by up to +18.2.

3

RL: reward coupling → perception-aware reward

Mechanism. The outcome reward correlates strongly with reasoning (r = 0.65–1.00) but only weakly with perception (r = 0.34–0.43), so perception receives a noisy credit signal.

Mitigation. Add a perception term to the reward. Ground-truth perception rewards give up to +6.0; a well-chosen surrogate reward still yields +3.2 without any perception labels.

A Controlled Diagnostic Framework

Real visual reasoning benchmarks rarely admit a clean separation of perception from reasoning. We build a synthetic testbed where the visual input has a canonical textual representation p*, enabling three orthogonal metrics:

End-to-end accuracy — does the model solve the task from the image?
Perception accuracy — does the model recover p* from the image?
Counterfactual reasoning accuracy — given oracle perception p*, can the model reason correctly?

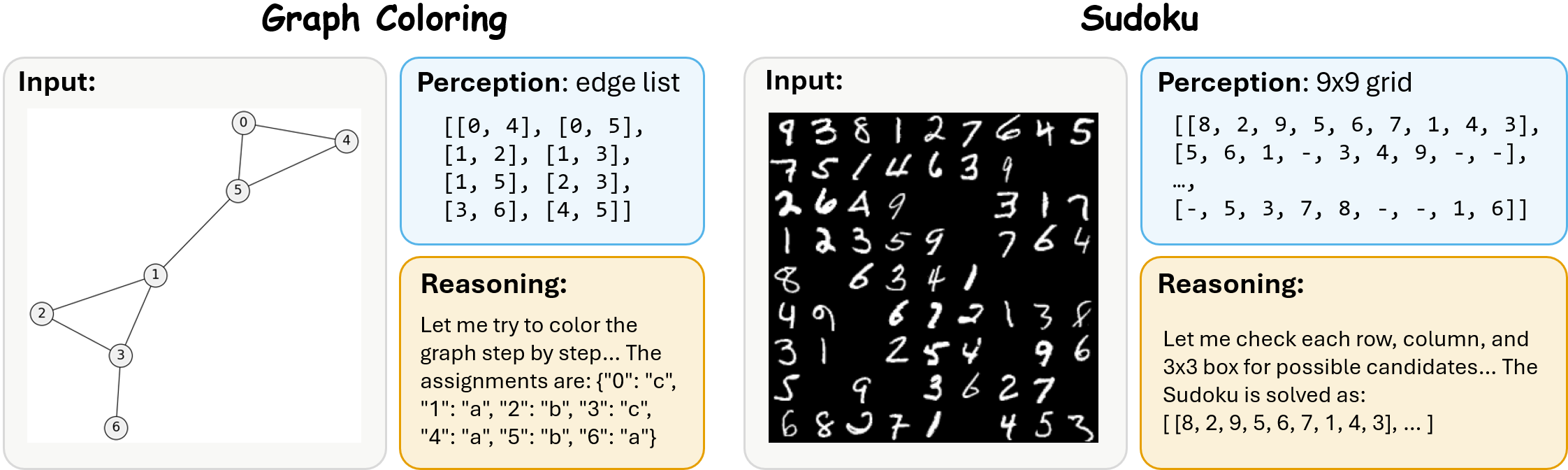

Graph coloring and Sudoku task illustration — **Two synthetic tasks.** *Graph Coloring* requires coloring all nodes with the chromatic number while assigning different colors to adjacent nodes; `p*` is the edge list. *Sudoku* requires completing the 9×9 grid; `p*` is the partially-filled grid. Outputs are structured as perception followed by reasoning.

SFT: Token Imbalance Drives the Asymmetry

In CoT supervision, perception is a compact transcription while reasoning sprawls across verification, reflection, and self-correction. Token-averaged cross-entropy implicitly weights each part by its token count — so perception is starved of gradient.

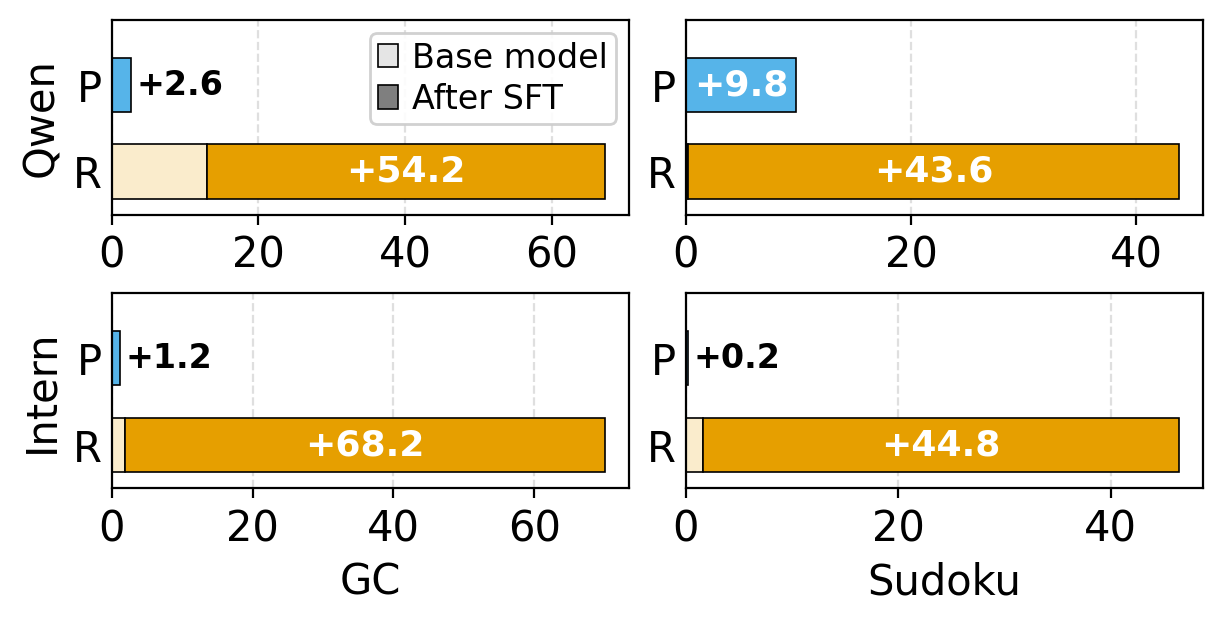

SFT perception vs reasoning gap — Reasoning improves dramatically; perception barely moves.

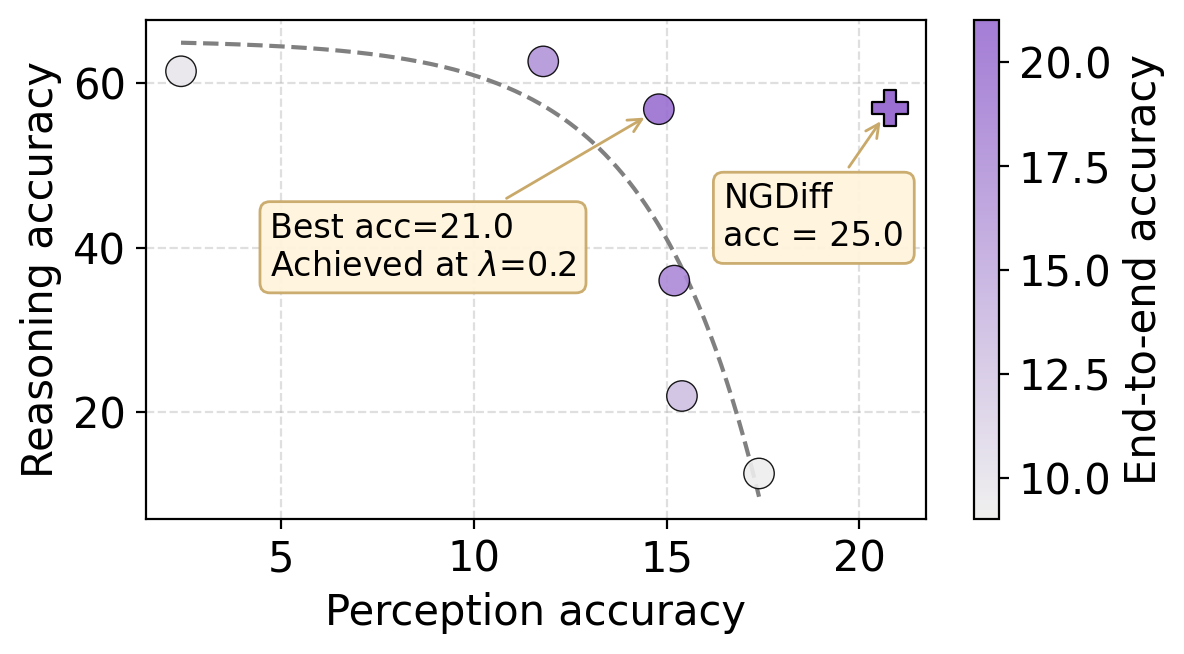

Perception-reasoning trade-off in SFT — Upweighting perception exposes a clean trade-off — and end-to-end accuracy peaks when perception is *modestly* upweighted.

Intervention: Loss Reweighting

Replace the standard token-averaged loss with L = λ · L_p + (1−λ) · L_r, where L_p and L_r are the token-averaged losses over the perception and reasoning spans, respectively.

A fixed reweighting already gives up to +13.8 points; dynamic balancing with NGDiff — which adjusts λ on the fly to equalize perception and reasoning gradients — gives up to +18.2.

RL: Reward Coupling Drives the Asymmetry

Under GRPO with an outcome reward, perception only influences the reward when the downstream reasoning also happens to be correct. The result is a credit-assignment problem: the reward signal is well-aligned with reasoning, but only loosely aligned with perception.

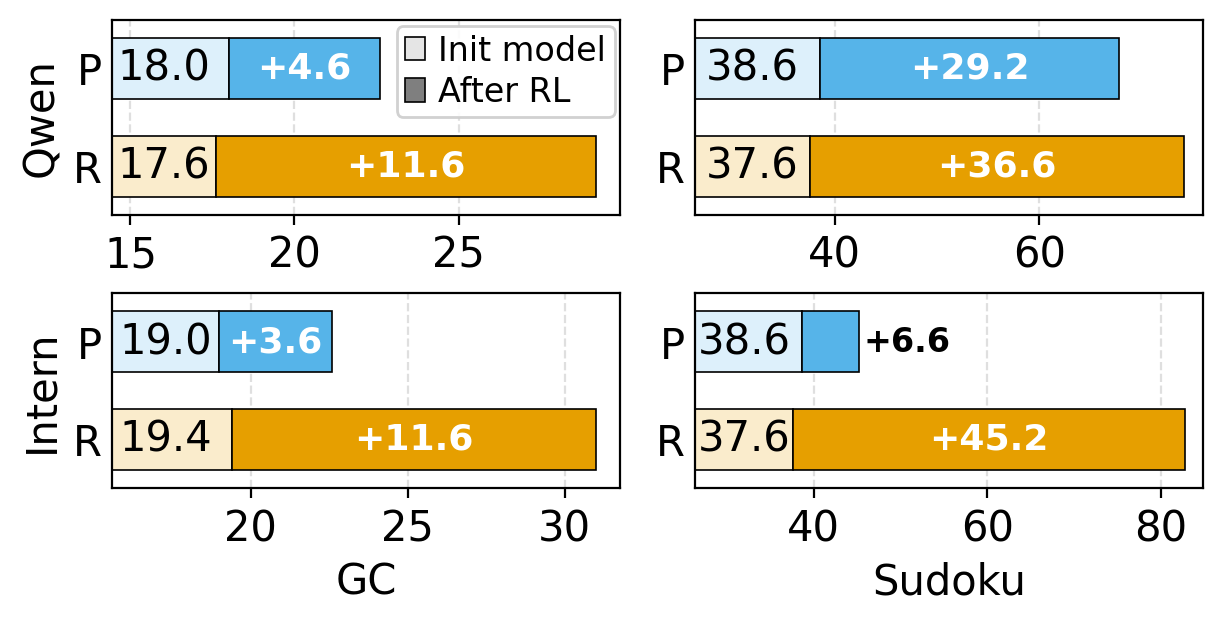

RL perception vs reasoning gap — Reasoning gains consistently outpace perception gains across settings.

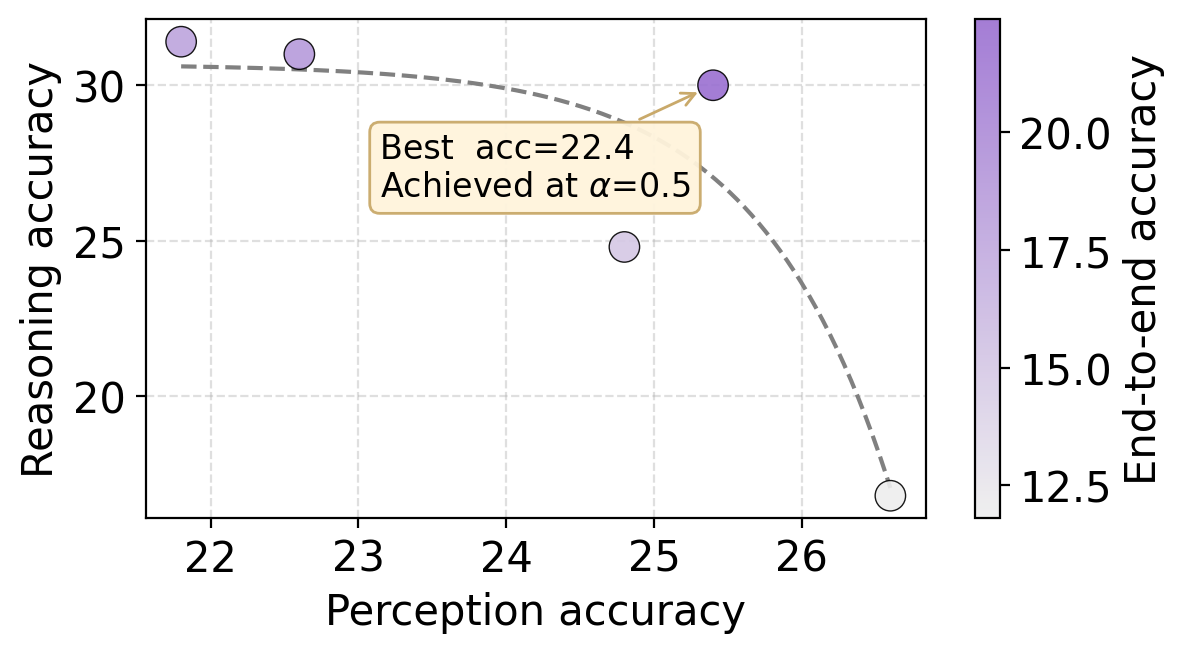

Perception-reasoning trade-off frontier in RL — Adding a perception reward exposes a clean trade-off frontier — end-to-end accuracy peaks at a non-zero perception-reward weight.

Intervention: Perception-Aware Reward

Optimize against R = α · a_p + (1−α) · a, where a_p is perception accuracy and a is end-to-end accuracy.

Ground-truth perception rewards yield up to +6.0 end-to-end accuracy. When ground-truth perception isn't available, surrogate rewards still help — and reward–perception correlation is a reliable diagnostic for which surrogate will work, yielding up to +3.2.

Takeaways for VLM Post-Training

Don't trust end-to-end accuracy alone. A model can post-train into much better reasoning without its perception meaningfully improving — and perception is what bottlenecks the next round of gains.
The default objectives are biased. Token-averaged SFT and outcome-reward RL each have a built-in preference for reasoning over perception.
The fix is paradigm-specific. SFT needs loss reweighting; RL needs perception-aware (or perception-correlated surrogate) rewards. Both are simple drop-in changes.
